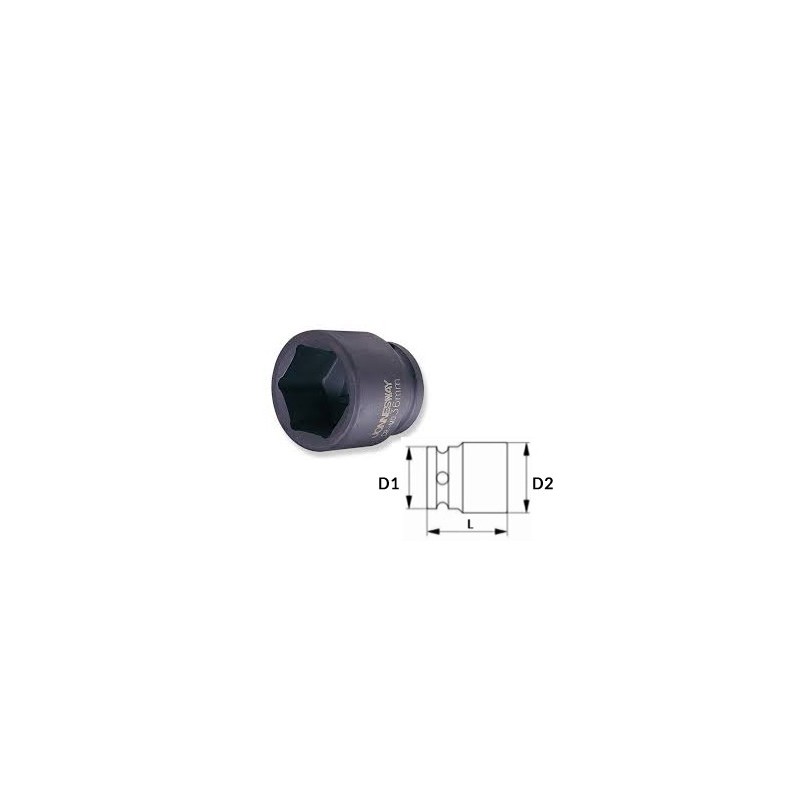

Chave caixa 1'' impacto várias medidas.
Confira as medidas na tabela abaixo antes de efetuar a compra.
| Ref. | Medida | D1 | D2 | L |
|---|---|---|---|---|
| S03A8124 | 24 mm | 41,9 mm | 54 mm | 58 mm |
| S03A8127 | 27 mm | 45,6 mm | 54 mm | 58 mm |
| S03A8129 | 29 mm | 48,1 mm | 54 mm | 60 mm |
| S03A8130 | 30 mm | 49,4 mm | 54 mm | 60 mm |
| S03A8132 | 32 mm | 51,9 mm | 54 mm | 60 mm |
| S03A8133 | 33 mm | 53,60 mm | 54 mm | 60 mm |
| S03A8134 | 34 mm | 54,4 mm | 54 mm | 62 mm |
| S03A8135 | 35 mm | 55,7 mm | 54 mm | 62 mm |
| S03A8136 | 36 mm | 56,9 mm | 54 mm | 62 mm |
| S03A8138 | 38 mm | 59,4 mm | 54 mm | 65 mm |
| S03A8141 | 41 mm | 63,1 mm | 54 mm | 65 mm |
| S03A8146 | 46 mm | 69,4 mm | 54 mm | 74 mm |
| S03A8150 | 50 mm | 74,4 mm | 54 mm | 74 mm |
| S03A8155 | 55 mm | 80,7 mm | 54 mm | 85 mm |
| S03A8160 | 60 mm | 87,1 mm | 54 mm | 90 mm |
| S03A8165 | 65 mm | 93,2 mm | 54 mm | 90 mm |
| S03A8170 | 70 mm | 99,4 mm | 54 mm | 100 mm |
| S03A8173 | 73 mm | 103,3 mm | 86 mm | 100 mm |
| S03A8175 | 75 mm | 105,6 mm | 86 mm | 100 mm |
| S03A8176 | 76 mm | 106,9 mm | 86 mm | 100 mm |
| S03A8178 | 78 mm | 110 mm | 86 mm | 100 mm |
| S03A8180 | 80 mm | 111,9 mm | 86 mm | 100 mm |
| S03A8185 | 85 mm | 118,5 mm | 86 mm | 110 mm |
| S03A8189 | 89 mm | 123,2 mm | 86 mm | 110 mm |
| S03A8190 | 90 mm | 124,4 mm | 86 mm | 110 mm |
| S03A8192 | 92 mm | 126,8 mm | 86 mm | 110 mm |
| S03A8195 | 95 mm | 129 mm | 86 mm | 110 mm |
